Specifications

  Display:

• Large .56” 6 digit LED . 7-segment red LED
• 2x 24 LCD display with backlight

  Serial Port:

• Dual Serial RS 232 to printer or to remote scoreboard

  Calibration Techniques:

• Post calibration without test weights
• Traditional calibration with test weights

  Units of Measure

• Lb, kg

  Display Mode

• Gross, net

  Transmitter Excitation:

• 8.25VDC power drives up to four Accu-Link
• Two TTL Outputs
• Two TTL Inputs

  Power Requirement

• DC: 12VDC

  Operating Temperature:

• -20° to +70°C (-4° to 158°F)

  Enclosure:

• Stainless steel

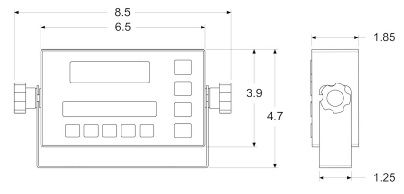

 Dimensions:

• 3.85”h x 6.5”w x 1.95”d
• with bracket/connect: 4.6”h x 8.5”w x 2.5”d

All specifications subject to change without notice. Please contact the Pacific Northwest Technologies factory or visit our website for the latest specifications.
